Product introduction：

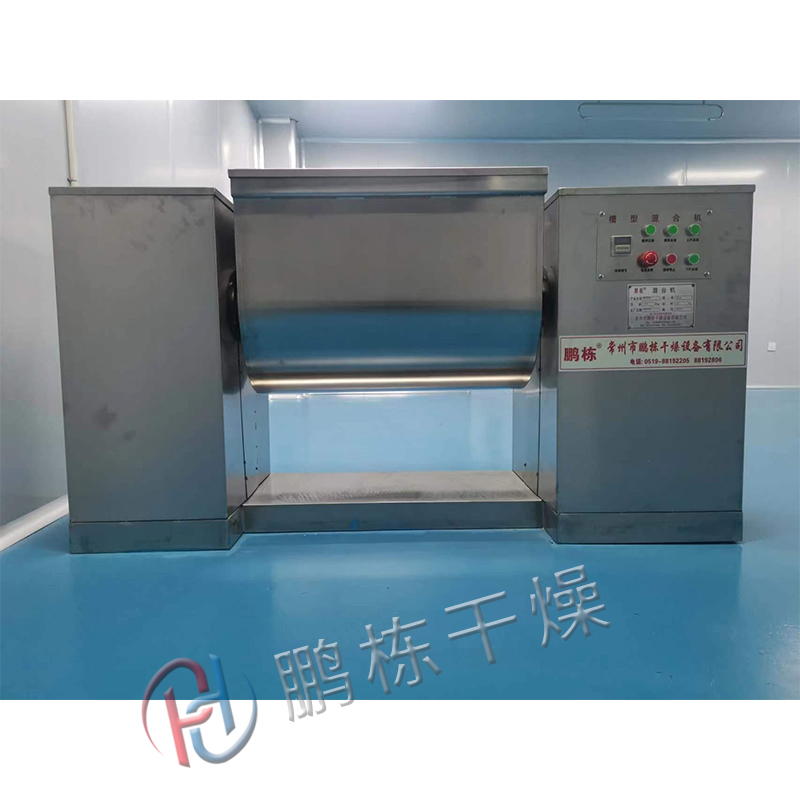

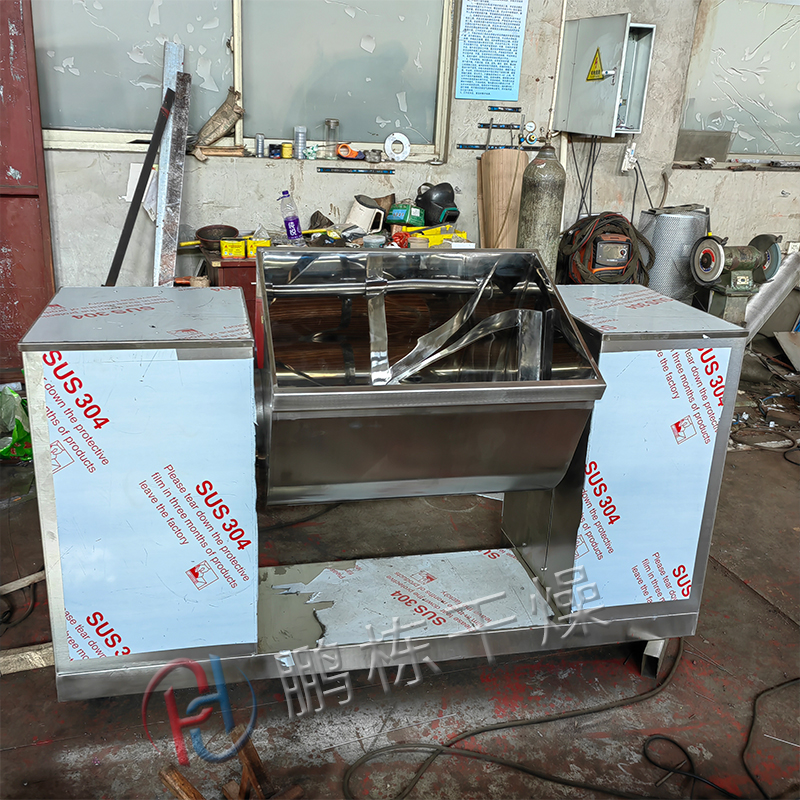

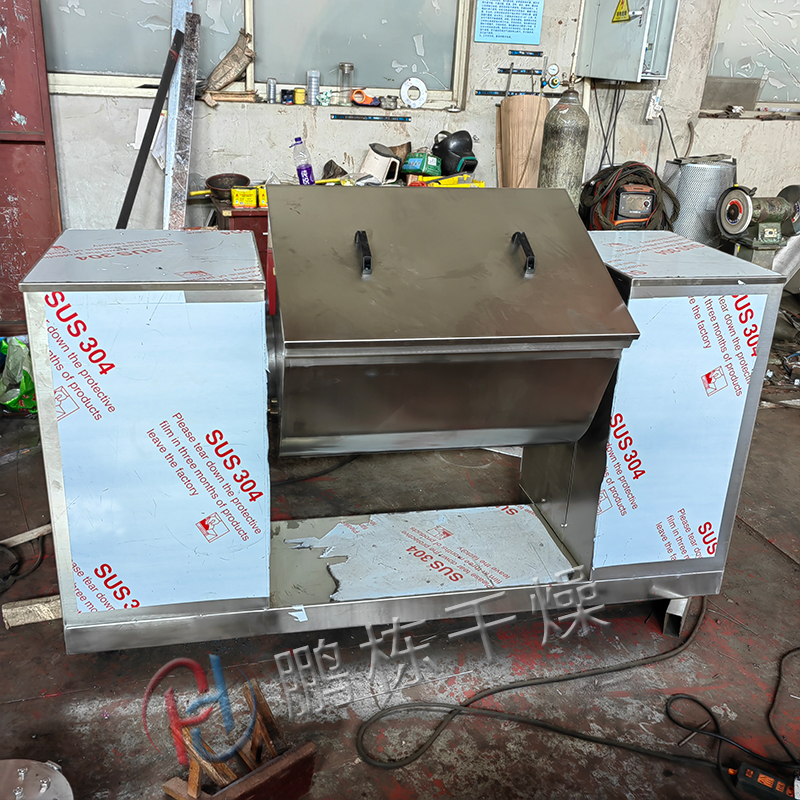

Trough mixer and material contact are made of stainless steel, pulp blade and barrel gap is small, mixing no dead Angle, mixing shaft is equipped with a sealing device at both ends, can reduce the material leakage, the hopper adopts button point control, easy discharge, suitable for high uniform requirements, material specific gravity difference material mixing.

Technical parameter：

The above data is for reference only, our company reserves the right to change the above data, if there is any change, without prior notice.

Working principle：

● Before use, an empty running test should be carried out. Before the test, the tightness of all the connecting parts of the machine, the amount of lubricating oil of the reducer and the integrity of the motor equipment should be checked, and then the main power switch should be closed for empty running test. Click the pour button and reset button respectively, check whether the working condition is good, and process after meeting the above requirements (the pour button and the reset button cannot be used at the same time).

● After feeding, cover the tank cover well, so as to avoid the material shallow discharge tank, cover for plexiglass can observe the stirring of the material, such as stirring to achieve the effect, click the pour button for pouring, when the hopper is close to the frame to stop, to prevent bad parts, after pouring, press the reset button, so that the tank compound to the original position.

Product characteristics：

●  Good dispersion: The equipment solves the problem of low uniformity and dead Angle caused by different proportion of materials. The equipment adopts the mixed structure of five-axis flying knife mortar, which can disperse various short fibers.

Wide range of use: the equipment can meet the different performance requirements of dry powder mortar production. Such as: masonry mortar, plastering mortar, insulation system required polymer mortar, polystyrene particle mortar and other dry mortar.

●  Small investment: the equipment has obvious price advantages, small investment and fast effect.

●  Easy to use: the equipment has a small footprint, simple operation, low energy consumption, can produce 5-8 tons per hour.

●  Long service life: the vulnerable parts of the equipment are all made of high-strength ground steel. It has the characteristics of long service life.
