Product introduction：

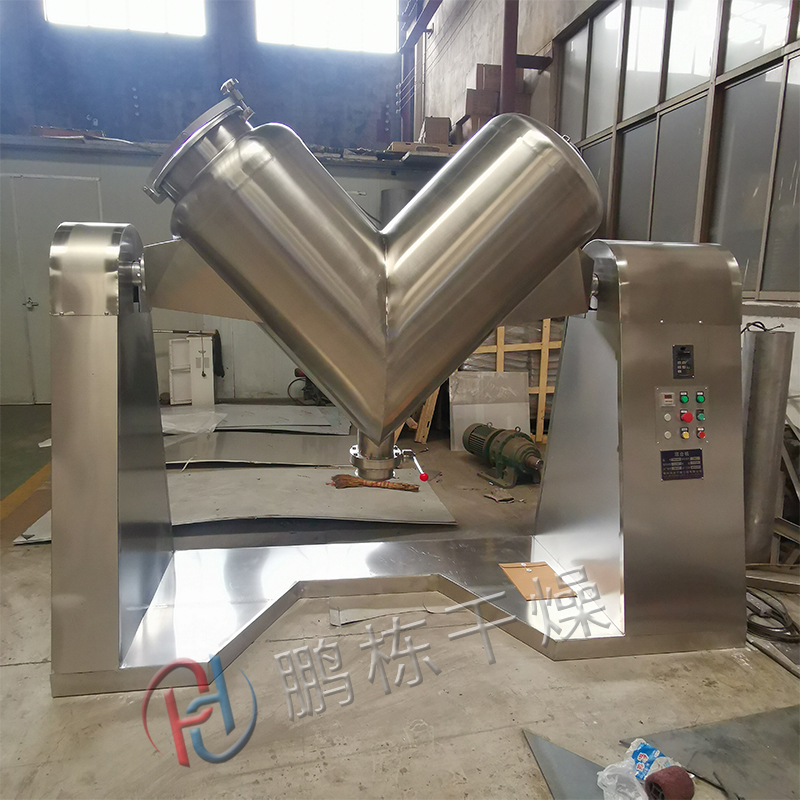

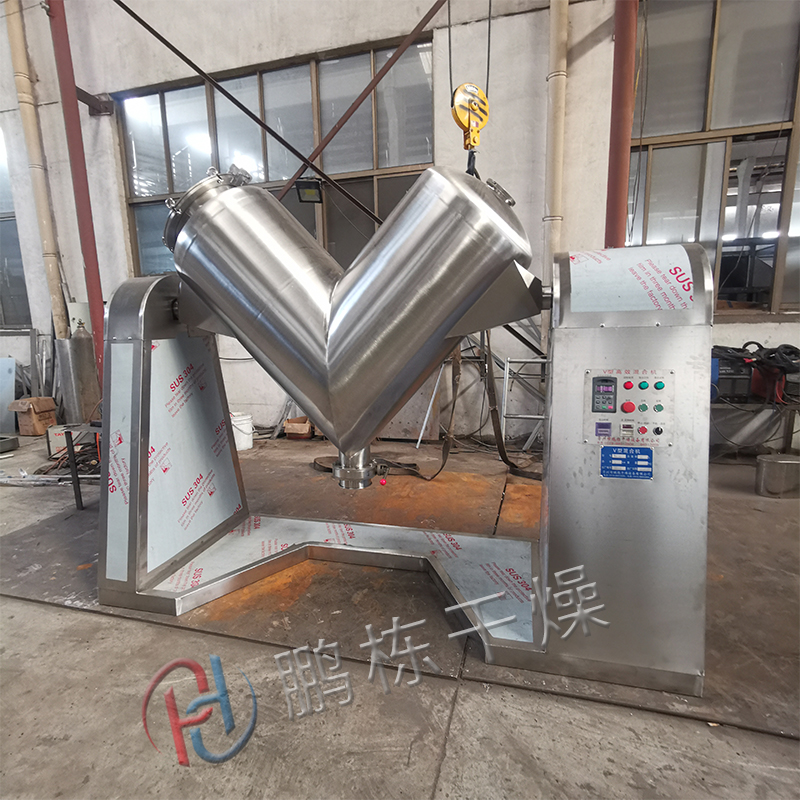

The mixing cylinder of VHJ series mixer has unique structure, high mixing efficiency, no dead Angle, the cylinder is made of stainless steel material, the internal and external walls are polished, the appearance is beautiful, the mixing is uniform, and the use is wide. This machine is used for mixing dry material particles in pharmaceutical, chemical, food, metallurgy and other industries.
Technical parameter：
Type specification | VH-0.18 | VH-0.3 | VH-0.5 | VH-1.0 | VH-1.5 | VH-2.0 | VH-2.5 | VH-3.0 | VH-4.0 | VH-5.0 | VH-6 |
Productive capacity（kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 |
With vacuum pump model | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
Feed time(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
Full volume(m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
Stirring speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
Turning height(mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
Note: Loading factor: 0.4-0.6. The production capacity in this table is calculated by loading factor 0.5 and material density 0.8.
The above data is for reference only, our company reserves the right to change the above data, if there is any change, without prior notice
Working principle：
The gear motor drives the V-shaped cylinder to rotate, because the length of the two cylinders is different, the material is asymmetrical flow, and the material is repeatedly alternated, divided and merged in the cylinder body; The material flows randomly from one cylinder to another, and at the same time there is slip between the powder particles, which is superimposed for many times in space, and the particles are constantly decibel on the newly generated surface, so that the repeated shear and diffusion movement is achieved, so as to achieve uniform mixing.
Product characteristics：
● The mixture is uniform, and the material flows vertically and horizontally in the two asymmetrical cylinders, and the mixing uniformity is good.
● Easy to use, the material can be used on vacuum feeding machine, there is no transmission device inside the cylinder, and the operation is sealed.
● Timing function, the device has a timing switch, can set the mixing time.
● Excellent equipment, V-shaped mixing cylinder, internal and external 304 stainless steel material, mirror polishing, beautiful appearance, easy to clean.
